Peristaltic Pumps for Chemical Metering, Transfer & Dosing
Valveless, Self-Priming Peristaltic Dosing Pumps Built for Industrial Applications
A chemical pump manufacturer for more than 80 years, Pulsafeeder engineers peristaltic pumps that move fluid by compressing a hose or tube between a rotor and rollers—with no check valves in the fluid path. Our portfolio of industrial peristaltic pumps spans low-volume water conditioning dosing to high-flow transfer, giving you a valveless, self-priming pump built to handle abrasive slurries, viscous fluids, and aggressive chemicals other pump types can’t.
Simple by design, Pulsafeeder peristaltic pumps are built to outlast
What is a peristaltic pump? How do most work?
Peristaltic pumps were first introduced commercially in the mid-1950s, built on a simple principle: continuous, repetitive pressure on a flexible tube or hose produces continuous positive flow. A rotor fitted with rollers or shoes compresses the tube against the inside of a circular casing. As the rotor turns, the compression point moves along the tube, pushing fluid ahead of it while drawing new fluid in behind. Because the fluid only ever touches the inside of the tube or hose, it never contacts the pump’s rotor, casing, or any check valves.
Pulsafeeder’s peristaltic pumps stand out for their simplicity, durability, ease of maintenance
Unlike shoe/wiper-type and linear (finger) pumps, Pulsafeeder’s PeriFlo, Mec-O-Matic, and Chem-Tech lines all use a rotary roller design. A rotor fitted with rollers spins inside a fixed casing, compressing the tube as it turns. This is the most common peristaltic design for industrial and water treatment dosing, favored for its simplicity, durability, and ease of service. When the tube eventually wears out, it’s a single, predictable part to replace, not a multi-component rebuild.
Whether you’re dosing chemicals in a water conditioning application or transferring abrasive slurry in an industrial process, Pulsafeeder offers a purpose-matched solution built for your compatibility and reliability requirements.
Find the Right Peristaltic Pump for Your Application
Each Pulsafeeder peristaltic pump design is made for a specific combination of flow rate, chemical compatibility, and application setting. Use the comparison below to identify the right technology for your application, and then explore the dedicated product page for detailed specifications, model options, and accessories.
Mec-O-Matic
Best For
Low-volume, low-pressure chemical dosing in pool, spa, drain treatment, and light commercial applications. A dependable peristaltic pump at the right price point.
Flow Range
2400T: 2.5 gal/24 hr (13.2 oz/hr)
2400T DC: 3.0 oz/min
2400T Plus: 2.5 gal/24 hr, adjustable to 0.22 oz/min
Dolphin: 13 – 97 gpd
VSP: 12 – 20 gpd
Pressure
25 PSIG (1.72 – 1.76 bar)
Control Options
On/off switch, 24-hr mechanical timer, prime push-button (DC); 7-day/8-event microprocessor timer with LCD display (2400T Plus)
Key Certifications
Dolphin: WQA Gold Seal; tested to NSF/ANSI 61-Sec. 8 (min. 8.96 GPH treatment volume); ETL Sanitation (pool/spa/hot tub) 2400T / VSP: contact factory for applicable approvals
Warrenty / Service
2-year warranty; KOPKits available
Chem-Tech (XPV / XP)
Best For
Water conditioning applications needing NSF/ANSI/CAN 61 and NSF/ANSI 372 compliance with accurate, repeatable metering.
XPV Chem-Tech peristaltic pumps offer digital control and system integration for facilities that need to monitor or report on dosing.
Flow Range
XPV: 8 – 100 gpd (1.3 – 15.8 lph)
XP: 4 – 80 gpd (0.60 – 12.6 lph)
Pressure
25 – 125 psi (1.7 – 8.6 bar)
Control Options
XPV: variable-speed peristaltic pump motor, 4-20mA, Hall Effect input, water meter input, flow totalization
XP: electronic timing circuit, duplex head, pulse input
Key Certifications
NSF/ANSI/CAN 61 and NSF/ANSI 372
Warrenty / Service
2-year warranty; KOPKits available
PeriFlo
(AMP / ChemTuff / FMP)
Best For
Industrial environments where higher-volume, higher-pressure, chemically demanding dosing or transfer calls for valveless peristaltic simplicity.
Covers applications that require high-accuracy, high-viscosity, high-flow peristaltic pumps (FMP Series) and a ClO2 peristaltic pump (ChemTuff Series).
Flow Range
AMP: 30 – 276 GPH (113 – 1044 LPH)
ChemTuff: 30 – 282 GPH (113 – 1067 LPH)
FMP: 9.5 – 131 GPM (36 – 495 LPM)
Pressure
Up to 115 PSI (8 BAR) max hose pressure
Control Options
Variable speed peristaltic pump controls with industry-standard I/O’s
Key Certifications
Contact factory for applicable agency approvals
Warrenty / Service
12-month warranty; KOPKit® program
The Pulsafeeder Advantage: Peristaltic Pumps Without the Valve
Pulsafeeder peristaltic liquid pumps isolate the fluid entirely within the tube or hose with no check valves, diaphragms, or dynamic shaft seals in the flow path. That means you get:
- Zero Valve Fouling: No check valves in the fluid path to clog, stick, or wear, eliminating the single most common failure point in chemical metering.
- Chemical & Slurry Versatility: Handle highly abrasive slurries, viscous or shear-sensitive fluids, and aggressive chemicals that challenge other pump types.
- Reversible Operation: PeriFlo’s AMP, ChemTuff, and FMP series all run in either direction for flexible system design.
- Consistent Metering Accuracy: PeriFlo’s AMP, ChemTuff, and FMP series are all rated to ±1% metering accuracy, so switching between series for different applications doesn’t mean compromising on precision.
Pulsafeeder's Complete Portfolio of Peristaltic Pumps
The Mec-O-Matic line of peristaltic pumps is designed to handle your chemical solution and slurry metering needs. Molded from rugged, chemical-resistant ABS with heat-treated metal gearing and a thermal- or impedance-protected gear motor, Mec-O-Matic is built to last. Typical applications include water treatment, cooling towers, swimming pools, boilers, agriculture, laundries, carwashes, livestock, metal finishing, warewashing, and waste treatment facilities.
2400T Series — Flow: 2.5 gal/24 hr (13.2 oz/hr) | Pressure: to 25 psi (1.72 bar)
Dolphin Series — Flow: 13 – 97 gpd (2.05 – 15.3 lph) | Pressure: 25 psi (1.72 bar)
VSP Series — Flow: 12 – 20 gpd (1.89 – 3.15 lph) | Pressure: 25 psi (1.72 bar)
Chem-Tech Peristaltic Pumps—Series XPV & XP
Since 1936, Pulsafeeder has been the recognized leader in chemical pumps for the water conditioning market. Chem-Tech peristaltic pumps are reliable, easy to use, affordable, and long-lasting—simple, intuitive positive displacement pumps with as few parts as possible to operate and maintain. XPV adds digital variable-speed control and system integration for facilities that need to monitor or report on dosing.
Series XPV — Flow: 8 – 100 gpd (1.3 – 15.8 lph) | Pressure: 25 – 125 psi (1.7 – 8.6 bar)
Series XP — Flow: 4 – 80 gpd (0.60 – 12.6 lph) | Pressure: 25 – 125 psi (1.7 – 8.6 bar)

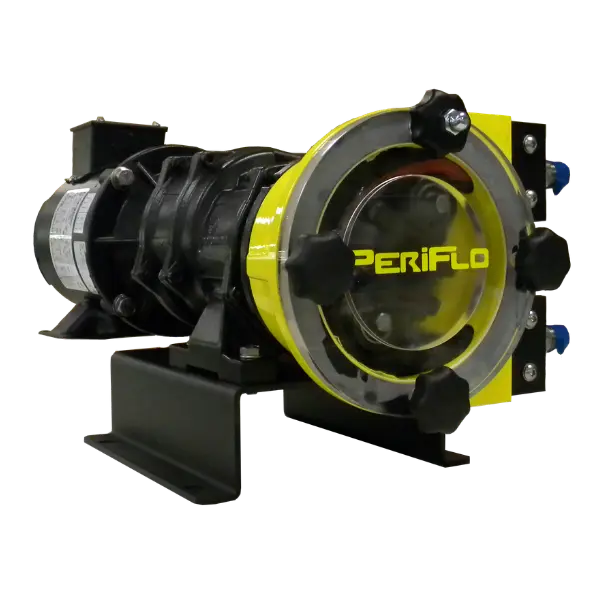

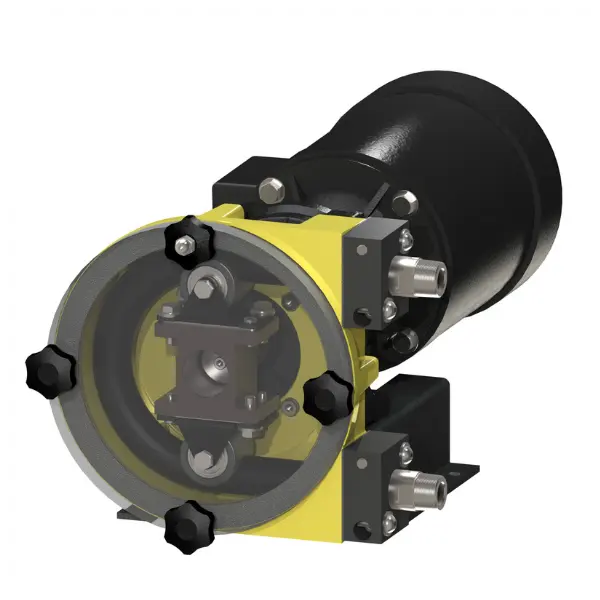

PeriFlo Peristaltic Pumps—AMP, ChemTuff & FMP
For industrial applications that call for higher-volume or higher-pressure duty, PeriFlo’s AMP, ChemTuff, and FMP series deliver valveless, sealless peristaltic performance—from general-purpose workhorse duty to Halar®-coated corrosion resistance to high-volume transfer up to 131 GPM (495 LPM). All three PeriFlo series pumps are rated to ±1% metering accuracy.
Peristaltic Pump Certifications and Compliance
Certification coverage varies by product line.
- Chem-Tech (XPV / XP): NSF/ANSI/CAN 61 and NSF/ANSI 372
- Mec-O-Matic Dolphin: WQA Gold Seal; tested/certified to NSF/ANSI 61-Section 8 (restrictions apply — min. 8.96 GPH treatment volume); ETL Sanitation listing for pool/spa/hot tub chemical solutions
- Mec-O-Matic VSP: ANSI/NSF Std. 50
- Mec-O-Matic 2400T / 2400T Plus: Contact factory for applicable agency approvals
- PeriFlo (AMP / ChemTuff / FMP): Contact factory for applicable agency approvals
Peristaltic Pump Accessories and System Components
Pulsafeeder supplies a complete ecosystem of pre-engineered, compatible accessories so you can source an entire chemical feed system from a single manufacturer. Available accessories for PeriFlo include:
- Variable speed controls with industry-standard I/O’s
- Hose/tube leak detection
- Pulsation dampeners and suction accumulators
- Pressure relief valves

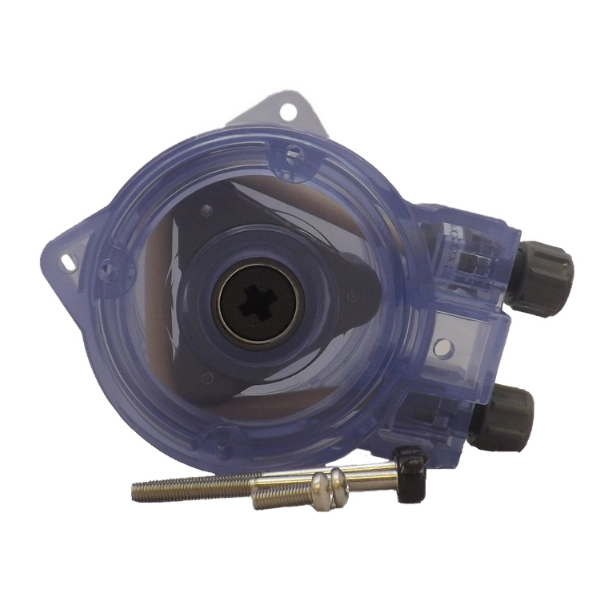

KOPKit® preventive-maintenance kits are available for Mec-O-Matic, Chem-Tech, and PeriFlo.
Frequently Asked Questions About Pulsafeeder Peristaltic Dosing Pumps
What's the difference between a peristaltic pump and a diaphragm metering pump?
Both are positive displacement technologies used for chemical metering, but they isolate fluid differently. A diaphragm pump uses a flexible diaphragm and check valves to move fluid; a peristaltic pump uses a compressed tube with no check valves in the flow path at all. Diaphragm pumps from Pulsafeeder typically offer higher pressure capability, while peristaltic pumps offer simpler maintenance and better handling of abrasive or high-solids fluids. See Pulsafeeder’s diaphragm metering pump lineup for pressure-critical applications.
What are the advantages of a peristaltic pump?
Peristaltic pumps have no check valves to foul, run dry without damage, and self-prime without losing suction. They handle abrasive slurries, viscous fluids, and aggressive chemicals that can damage other pump types, and routine maintenance is limited to replacing a single wear item: the tube or hose.
Are there any tradeoffs with peristaltic pumps?
Tube and hose material must be matched to the chemical being pumped, and the tube itself is a wear item that requires periodic replacement on a service schedule. Pulsafeeder’s PeriFlo AMP, ChemTuff, and FMP series are all rated to ±1% metering accuracy, so precision isn’t a tradeoff, but tube service life should be part of your maintenance planning.
How accurate are Pulsafeeder's peristaltic pumps?
PeriFlo’s AMP, ChemTuff, and FMP series are all rated to ±1% metering accuracy, giving you one consistent accuracy standard whether you choose general-purpose, corrosion-resistant, or high-volume duty.
