COUNTDOWN TO THE ECLIPSE PRO

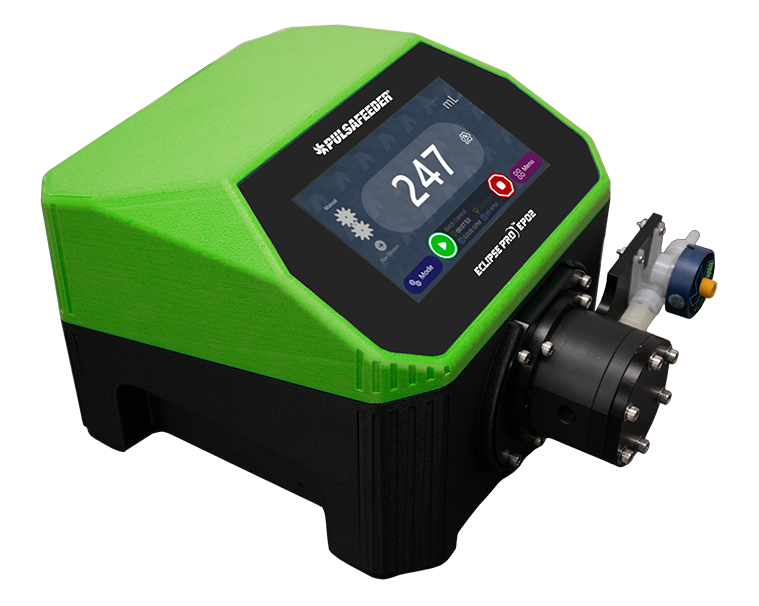

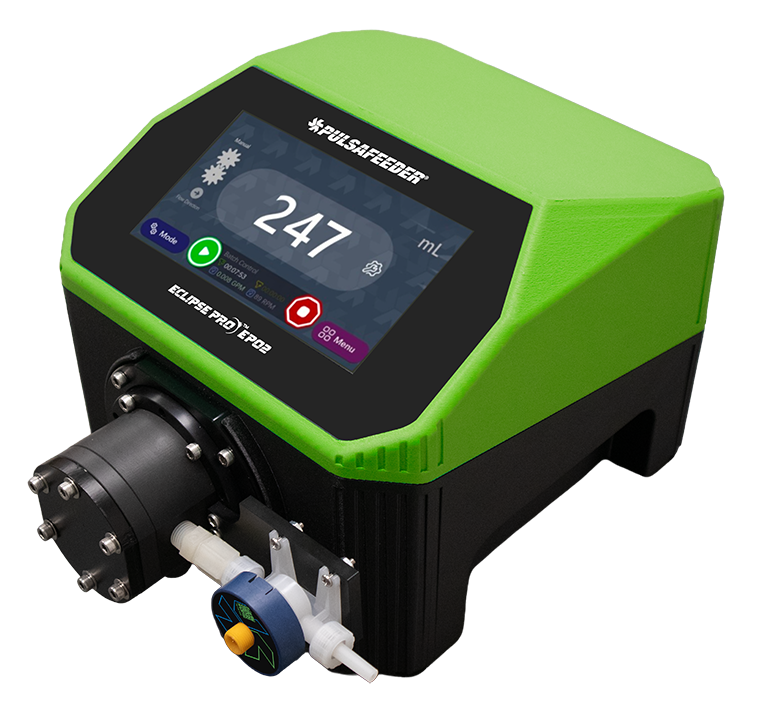

Eclipse ProTM Pulseless Rotary Gear Pumps
Best for: Demanding industrial and municipal water and wastewater applications.
FLOW
1-19 GPH (Up to 27 GPH @ W.O.)
PRESSURE
Up to 150 PSI (10 BAR)
Achieve Constant Flow Rates Regardless of Pressure Changes via Integrated Digital Monitoring
The "Flow and Go" Advantage for Industrial Efficiency
The Eclipse Pro™ rotary gear pump is engineered for immediate response. Whether triggered by manual system commands or automated process signals, this positive displacement pump adjusts instantly to fluctuating flow demands
Smart Maintenance & Superior Service Life
Predictive Intelligence Meets Extended Service Intervals
The Eclipse Pro™ removes the guesswork from your maintenance schedule. With advanced onboard diagnostics, you are notified well in advance of required service—eliminating the risk of being caught off guard by emergency failures.
Break the Cycle of Costly Cartridge Replacements
Unlike competing pumps that require expensive, frequent cartridge swaps every 3 to 6 months, the Eclipse Pro™ is engineered for the long haul.
Unlike competing pumps that require expensive, frequent cartridge swaps every 3 to 6 months, the Eclipse Pro™ is engineered for the long haul.
- 18 to 24 Month Service Life: Under standard operating conditions, the Eclipse Pro™ only requires gear and liner replacements every 18 months to 2 years.
- Significant Cost Savings: Reduce your annual spare parts spend and labor costs by extending your service intervals by up to 400%.
- Sustainable Maintenance: By replacing only the wear components (gears and liners) rather than entire cartridges, you reduce industrial waste and inventory overhead.
Rapid Repair-in-Place (RIP) Technology
When that 2-year window finally arrives, our front pull-out design ensures a seamless process. Perform a full “repair-in-place” in minutes without disturbing your piping or system alignment, ensuring your facility returns to peak productivity immediately.
When that 2-year window finally arrives, our front pull-out design ensures a seamless process. Perform a full “repair-in-place” in minutes without disturbing your piping or system alignment, ensuring your facility returns to peak productivity immediately.
Who wants to be surprised by a pump that needs maintenance? Eclipse ProTM has Predictable Maintenance.
You will know in advance when Eclipse ProTM maintenance will be needed. Don’t get caught off guard, nor any need to replace costly cartridges every 3 to 6 months. Eclipse ProTM only requires gears and liners every 18 months to 2 years.
No loss of prime.
Gaseous chemicals such as Sodium Hypochlorite is not a problem for Eclipse ProTM gear pump solutions. Industrial gear pump solutions reduce downtime
Reduce Total Cost of Ownership (TCO) and System Complexity with an Integrated All-In-One Pump Solution.
Eliminate Bulky Components and Infrastructure
Standard pump setups often require excessive hardware. The Eclipse Pro™ simplifies your industrial fluid system by integrating the motor, controller, and pump into a single, compact unit. This integrated design eliminates the need for:
Standard pump setups often require excessive hardware. The Eclipse Pro™ simplifies your industrial fluid system by integrating the motor, controller, and pump into a single, compact unit. This integrated design eliminates the need for:
- Variable Frequency Drives (VFDs) and external control panels.
- Cumbersome baseplate assemblies and heavy NEMA motors.
- Excessive electrical wiring and hardware housing.
Engineered for Efficiency and Lower Installation Costs
By utilizing pulseless rotary gear technology, the Eclipse Pro™ provides a smooth, constant flow that allows for smaller piping diameters and fewer dampening accessories.
By utilizing pulseless rotary gear technology, the Eclipse Pro™ provides a smooth, constant flow that allows for smaller piping diameters and fewer dampening accessories.
Rugged Protection for Harsh Environments
Every unit is housed in a high-performance IP66 and NEMA 4X enclosure, ensuring reliable operation in washdown areas or corrosive industrial environments without the need for additional shielding.
Every unit is housed in a high-performance IP66 and NEMA 4X enclosure, ensuring reliable operation in washdown areas or corrosive industrial environments without the need for additional shielding.
Why Choose the Eclipse ProTM for your System?
- Set It & Forget It – Eclipse ProTM will let you know in advance when maintenance will be needed
- Universal Mounting – Easily replace competitors’ peristaltic pumps with Eclipse ProTM in the field
- Compact Design – Lightweight, durable, space-saving, and low maintenance
- Unmatched Value – Eclipse ProTM delivers performance and reliability, no need to replace expensive cartilages every 3 to 6 months
- Approvals – Eclipse ProTM safe for drinking water NSF/ANSI/CAN 61 and 372 and BABAA compliant.
Specifications
Accessories
Brochure
Tech Sheet
IOMS
Distributor Tools
Specifications
I/O
- Inputs: Integrated/External flow control; External speed control; Dry contact
- Flow validation input from user: Standard: Dry contact, Hall effect or 4-20mA
- External Speed/Flow Control: 4-20mA or frequency input, MODBUS (one for speed and one for flow)
- Outputs: One programmable 4-20mA output for motor speed or flow value; or a passthrough 4-20mA input. Allow for customers to monitor remotely (they can choose): speed, torque, flow (for example) or anything that could be imposed on a “linear scale” can be accommodated. Additional outputs: Modbus, 4 programable relays
- Auto/Man, Run, Alarm, and Call with SCADA:
- 4 programmable relay outputs. Dry contacts: 3 x 1A, 1 x 6A. Local/Remote, Run Indication, Fail / Alarm, Others etc.
- Standard Dry Contact Input. Dry contact signal from SCADA permission to run
Chemical Handling Capabilities
- Self-Priming with Foot Valve: 5 ft deep (1.524m)
- Viscosity: Up to 1,000 cPs
- Process temperature: 104°-200° (-40°-93°C)
- Ambient temperature: -14°-122° (-10°-50°C)
Accuracy & Performance
- HI Standard Compliance: Meet and test to HI 3.6 Grade B (+/- 5% for flow and differential pressure, +/- 8% for power, +/-2% for speed)
- NPIP Required: 15 psia (must have, flooded suction)
- Self-Priming with Foot Valve: From 5 ft deep
- Dry Run Protection: Shut down the pump in 10 seconds when detecting low or no flow
- Solids Content Limits: Solids less than 70 microns (0.003 inches); Concentrations less than 10% by volume
Materials & Construction
- Wet End Materials: PVDF – Standard
- Shaft and Gears: PEEK – Standard
- Bears and Wear Plates: Carbon Graphite
- O-Rings: PTFE Coated Viton. Optional: Kalrez, FKM (Viton®), CSM (Hypalon®), PTFE
- Replaceable Liner: Carbon reinforced PTFE
- Inner Magnet: Virgin PTFE Coated, Magnet Grade [TBD], same as current E02 Magnets
- Hardware: 188SS – Standard
Accessories
Complete system accessories for turnkey installations
KOP Kits
Comprehensive maintenance kits containing all replacement parts for preventive maintenance programs, vacuum-packed for extended storage.
Pressure Relief Valves
Essential safety components to protect pumps and piping systems from overpressure conditions and blockages.
Brochure
Tech Sheet
IOMS
Distributor Tools
Eclipse Pro CSI Specifications
Presentations
Playlist
1 Videos
2:01
Overview
The features and benefits of the Pulsafeeder Eclipse Pro Pulsaless Gear Pump.
