EASTERN Centrichem

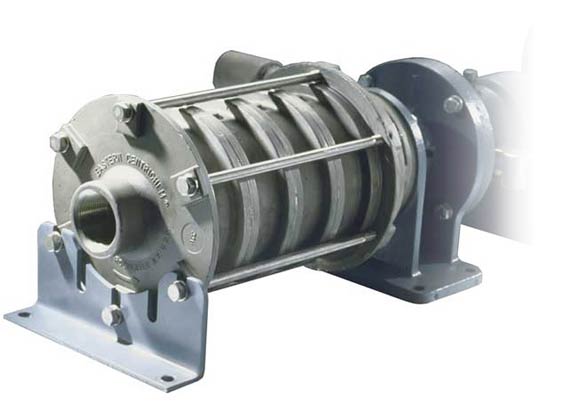

These single-stage and multi-stage centrifugal pumps are designed for a wide variety of process industry applications and laboratory uses. They are designed for long and reliable service.
Each Centrichem pump is close coupled for greater strength. Their design eliminates the need for special base-plate mountings or complicated drives. Pump chambers, rear housings, covers and impellers are all precision castings to ensure that pump walls are smooth, which improves hydraulic efficiency. Generous clearance and the overhung shaft design enable these pumps to handle corrosive liquids containing low percentages of solids. Mechanical rotary seals make these pumps suitable for extensive applications with acids, alkalis, and solvents.
Eastern ECC1
SPECS
Flow: 54 gpm (245.5 l/m)
Pressure: 72 Feet (21.9 Meters)
Eastern ECD1(6)
SPECS
Flow: 6.5 gpm (24.6 l/m)
Pressure: 46 Feet (14 Meters)
Eastern ECD1(9)
SPECS
Flow: 9 gpm (30 l/m)
Pressure: 50 Feet (15.25 Meters)
Eastern ECD1(20)
SPECS
Flow: 1.5 gpm (6.8 l/m)
Pressure:175 Psig (12 bar)
Eastern ECH1
SPECS
Flow: 84 gpm (318 l/m)
Pressure: 93 Feet (28.3 Meters)
Eastern ECH2
SPECS
Flow: 84 gpm (318 l/m)
Pressure: 165 Feet (50.3 Meters)
Eastern ECH3
SPECS
Flow: 84 gpm (318 l/m)
Pressure: 235 Feet (71.6 Meters)
Eastern ECH4
SPECS
Flow: 84 gpm (318 l/m)
Pressure: 297 Feet (90.53 Meters)
