Eclipse 125 Rotary Pump
FLOW
Up to 33 gpm (125 lpm)
PRESSURE
150 psi (10.3 bar)
Overview
Specifications
Brochures
Tech Sheets
IOMS
Overview
Eclipse Rotary Gear Pumps represent a dramatic advance in rotary pump technology. Combining proven design principles with state-of-the-art engineered composites, this chemical transfer pump is the safest, simplest, most reliable chemical pump on the market today. With easy pull-out design, service for this chemical pump only takes minutes, reducing process downtime and maintenance costs. It is commonly used for applications in industries such as chemical processing, petrochemical, and water treatment.
- No mechanical seals needed because of magnetically driven, engineered composite housings and gears
- Built for the harshest environments, ideal fit for many medium to highly corrosive liquids
Non-Mechanical
- Close coupled mounting eliminates cost and potential issues associated with pump and motor alignment
- Bi-directional and mounting in 45° increments
Mechanical
- Available in 316LSS for chemical resistance
- Patented replaceable housing liner reduces repair costs
- One-piece gear and shaft assembly eliminates common gear failures at the keyway
Zero Leakage
- Sealless design (Metallic)
- Fully encapsulated magnets (Non-Metallic)
- Engineered composite fluoropolymer provides superior chemical resistance (Non-Metallic)
- Zero emissions of hazardous or regulated chemicals
Ease of Maintenance

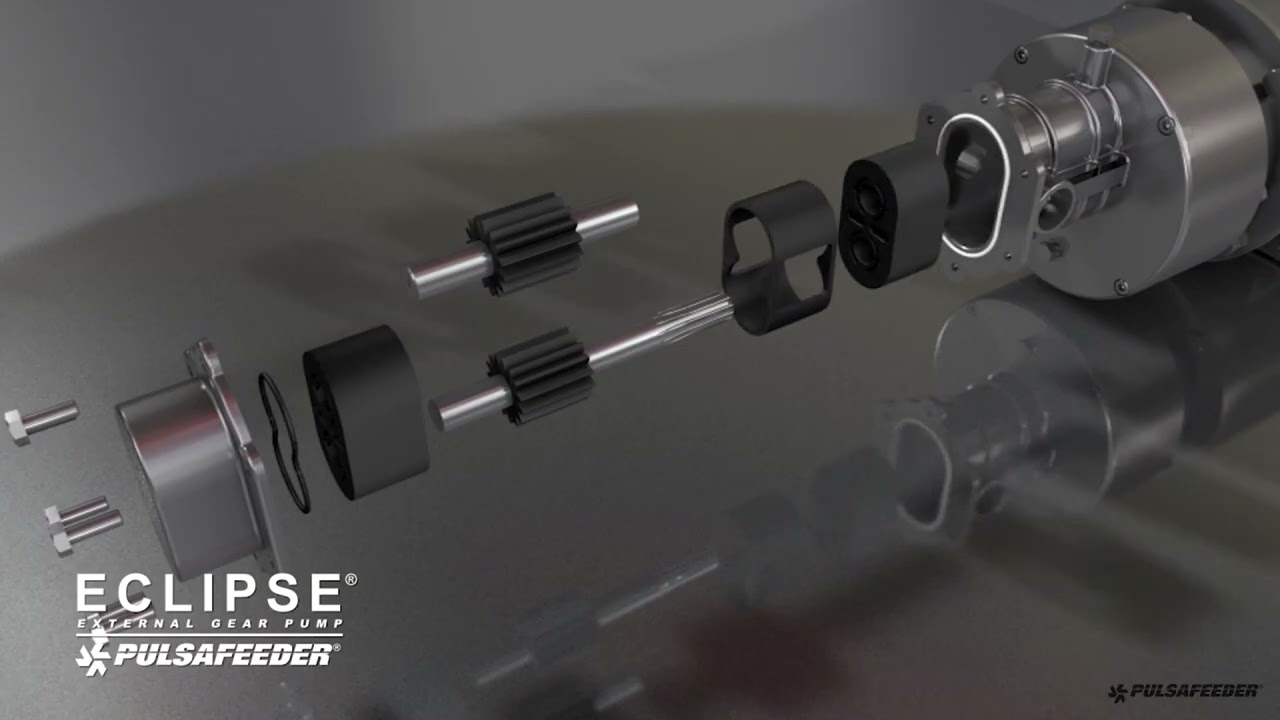

- Front pull-out design for quick and easy service
- Piping and electrical stay in place
- KOPkit® (Keep On Pumping kit) saves time and money
- Simplified orders and inventory
- Reduced downtime
Controls
- Pulsafeeder RV Controller: Intelligent Motor Speed
View all models of the Eclipse Rotary Gear Pump.
Specifications
Gear Type External spur gear
Direction of rotation Bi-directional
Theoretical Displacement 2.135 US gal / 100 Rev
Minimum Fluid Temperature -40°F (-40°C)
Max Speed 1,750 RPM
Liner Carbon reinforced PTFE
Bearing Type Sleeve bearing
Eclipse Non-Metallic
Port size and type 1 1/2″ ANSI 150# / DIN 32/40 Flanged
Viscosity Up to 10,000 cPs
Fluid Temperatures Up to 200°F (93°C) *with derated pressures
Motor Frames NEMA 56C, 143/145TC, 182/184TC, 213/15TC IEC 100 B3/B14
Standards Compliance NSF, CE, ATEX
Base Materials PVDF
Bearings Carbon Graphite, Silicon carbide (Graphite-impregnated)
O-rings Viton, EDPM, or Perfluoroelastomer
Shafts Alumina Ceramic
Drive and Idler Gear Carbon reinforced PTFE
Magnet Neodymium encapsulated virgin PTFE: 300°F (149°C)
Eclipse Metallic
Port size and type 1 1/2″ NPT or BSPT
Flange ANSI 150# / DIN 32/40 PN16
Viscosity Up to 5,000 cPs
Fluid Temperatures Up to 300°F (149°C)
Motor Frames 143/145TC, 182/184TC, 213/215TC NEMA Foot mount with C-Face
Standards Compliance CE, ATEX
Base Materials 316LSS
Bearings Carbon Graphite, Silicon carbide (Graphite-impregnated), or PTFE
O-rings PTFE, or Perfluoroelastomer
Shafts 316LSS or Alumina Ceramic
Drive Gear 316LSS, PTFE
Idler Gear 316LSS, PEEK, PTFE
Magnet Samarium Cobalt: 450°F (232°C)
